Cut-Fill Tolerance Colors and Values#

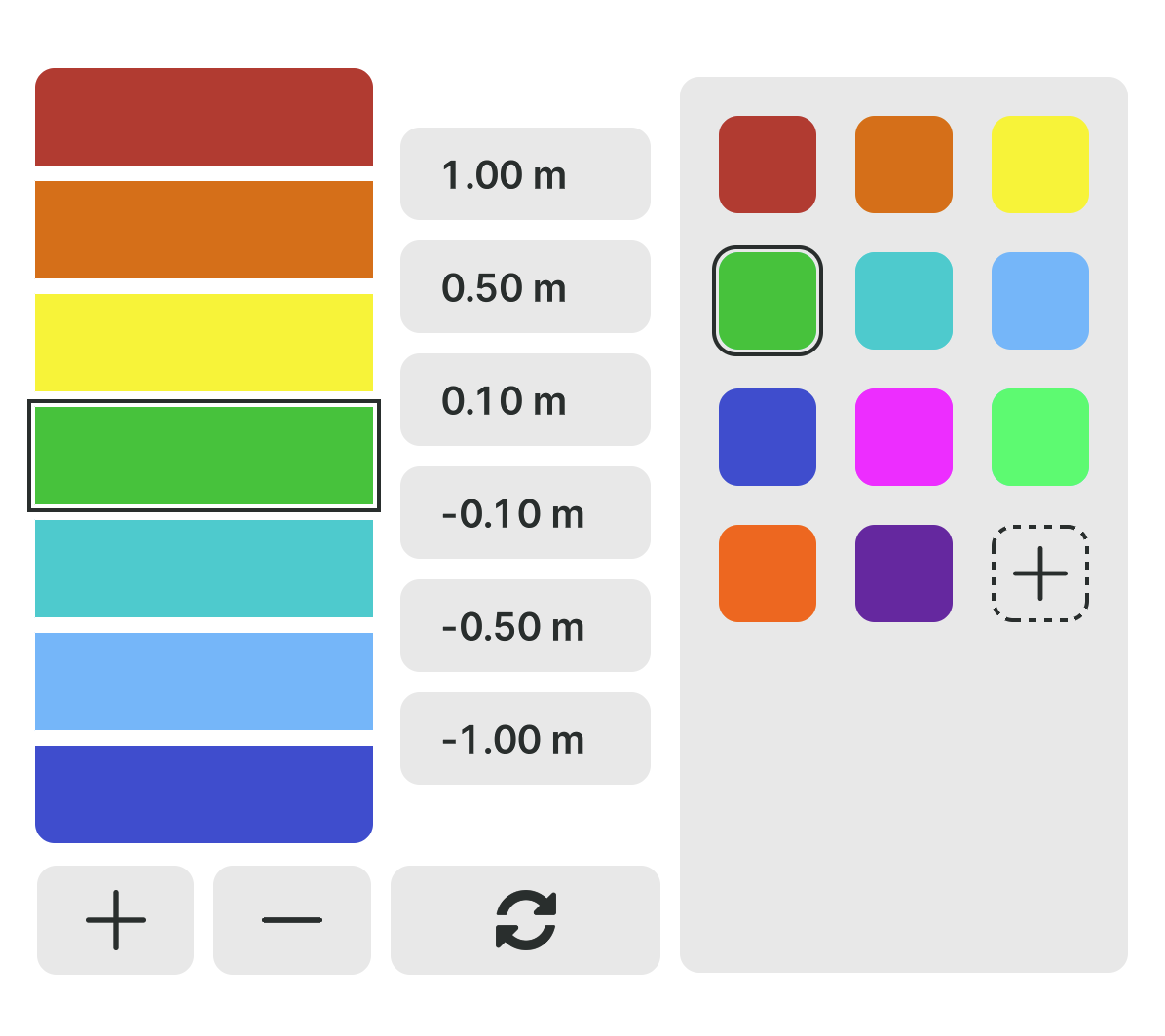

The Cut-Fill Tolerance Colors and Values settings allow you to customize how cut and fill elevations are visualized throughout the app's cut/fill widgets and views.

You can find these settings in App Settings.

Changing Colors#

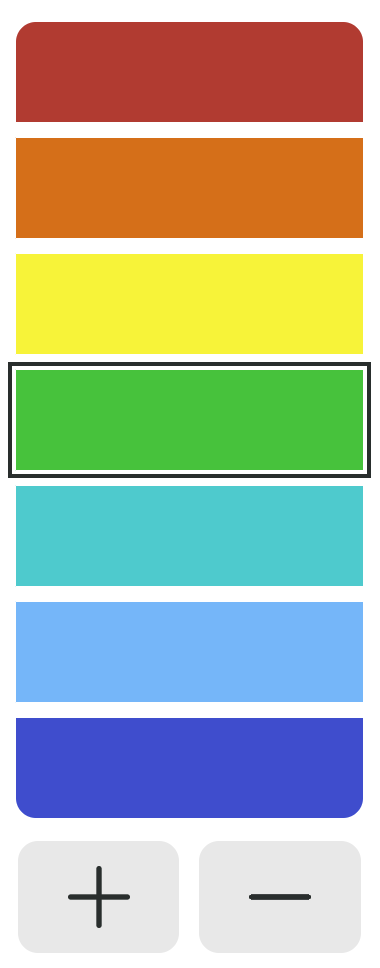

The display on the left shows the colors currently used for cut/fill visualization.

• Press the + button to add a new color level.
• Press the − button to remove a color level.
• To change a color:
  1. Select the color you want to modify in the list on the left.

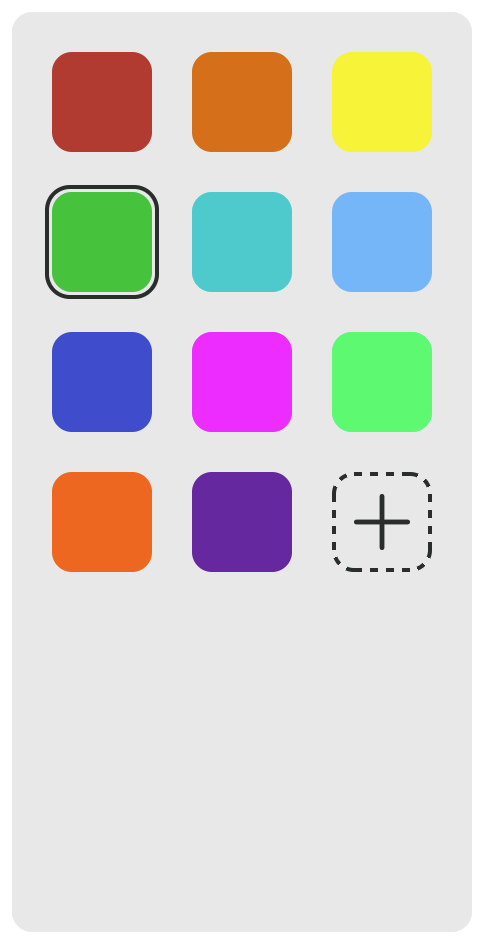

  2. Tap on a color from the palette on the right.
  3. The selected color will immediately be updated.

Custom Colors#

If the desired color is not available in the palette, you can create your own custom color.

1. Press the dashed + button in the color palette panel.
2. A color picker dialog will open.
3. Use the HSV sliders to select any color.
4. Press Select to add the color to the palette.

The new color will remain available in the palette for future use.

Removing Custom Colors#

Custom colors can be removed from the palette by pressing the X button displayed in the corner of the custom color.

Setting Tolerance Values#

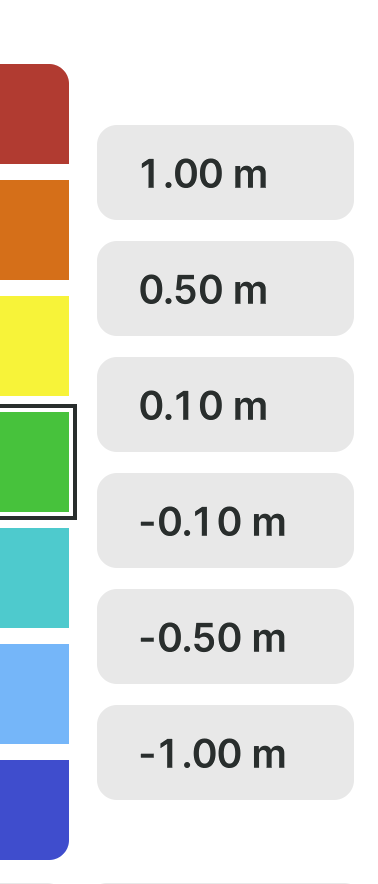

Next to the color list on the left are a series of height value fields.

Each value represents the threshold between two adjacent colors and determines when the visualization changes from one color to the next.

Editing Values#

• Tap a value field to edit it.
• Enter the desired height value.
• Values can be set to any numeric value.

The tolerance values are always maintained in descending order (highest to lowest) to ensure a valid color range configuration.

Resetting to Defaults#

To restore the default colors and tolerance values, press the Reset button.

This will reset:

• All used colors
• All tolerance values

to the application's default configuration.
